Figures show wave height throughout the Chicago Harbor based on the 20 year storm model waves. Wave height is measured in meters and is color coded by magnitude (as shown on the figures).

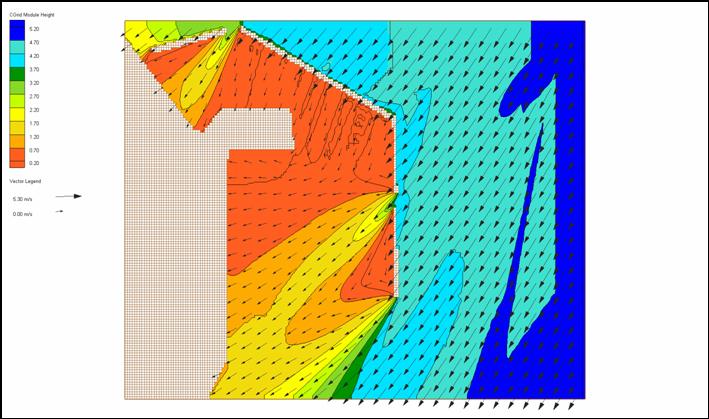

Figure 4: Angle = 25 degrees (from North), T = 11.9 seconds, Hs = 5.3 meters, U = 15 m/s

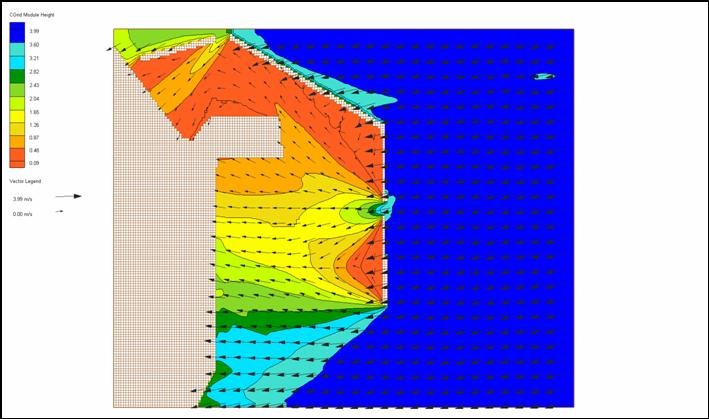

Figure 5: Angle = 78 degrees (from North), T = 10 seconds, Hs = 3.8 meters, U = 15 m/s

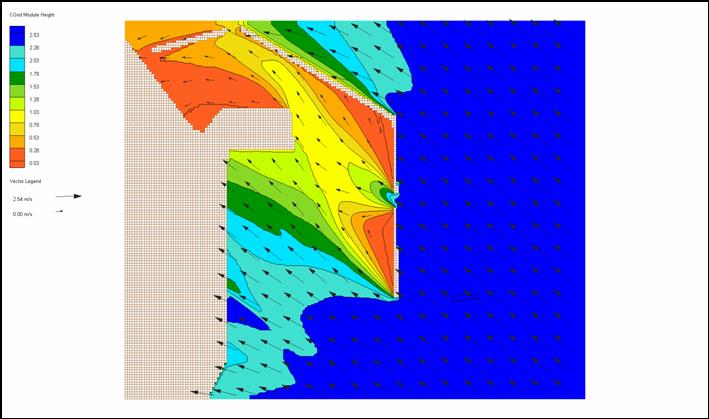

Figure 6: Angle = 131 degrees (from North), T = 8.1 seconds, Hs = 2.5 meters, U = 15 m/s
